Fire File 31 M-205

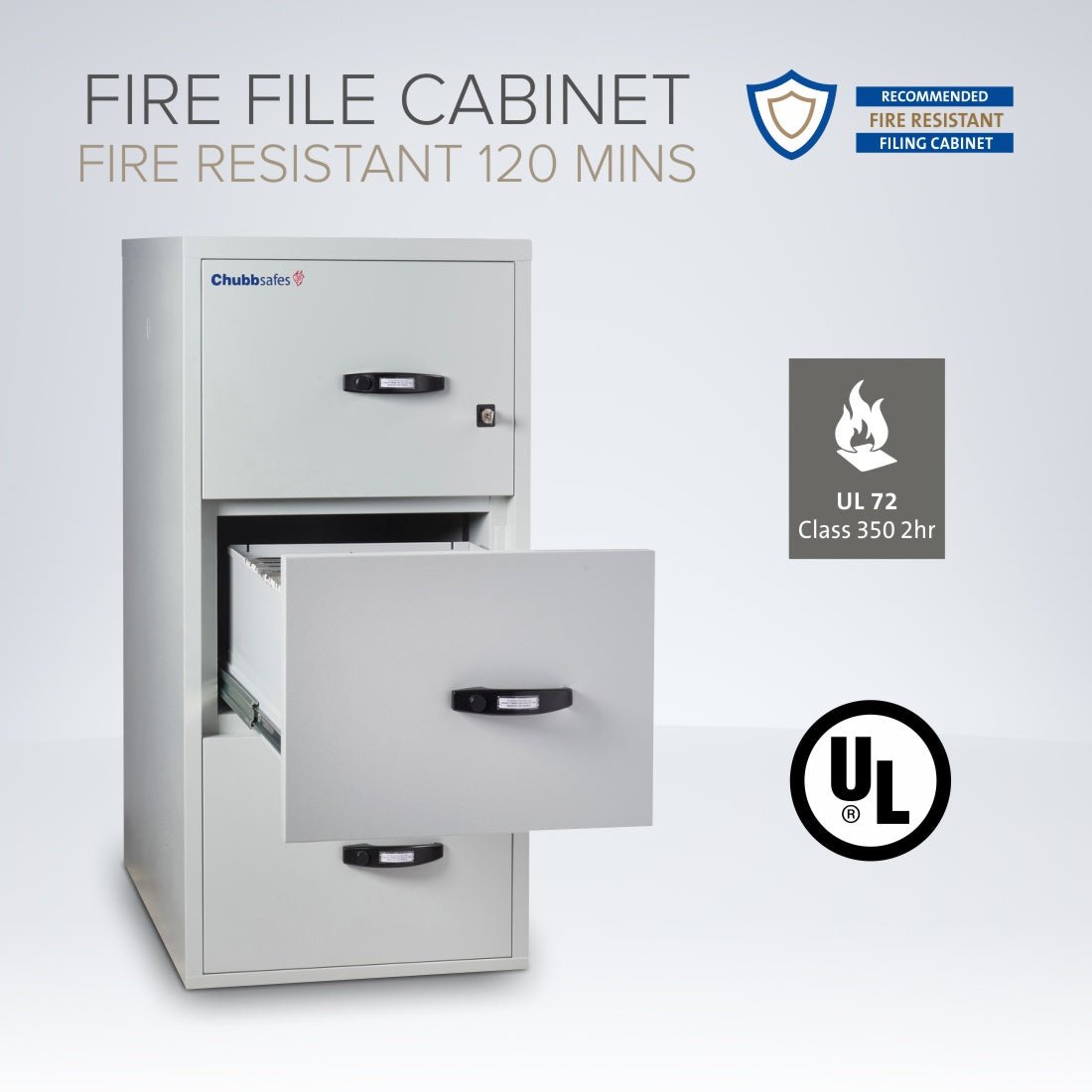

Chubbsafes Fire File 31 M205 — 3-drawer fire-resistant filing cabinet with 204L capacity and UL 72 Class 350 certification.
Fire File 31
A fire-resistant cabinet with generous storage capacity for files in your office.
Key Features
- UL 72 Class 350 fire resistance certification for up to 1 or 2 hours, depending on certified model.
- Steel dividing plate between each drawer for added protection.
- High-quality steel sliders for comfortable operation and full drawer access.
- On two-hour certified models, fire protection is activated when the drawers are pushed closed.
- Maximised storage capacity for office documents and files.
- Lightweight construction for easier transportation, installation and reduced floor loading.
- High-security locks fitted as standard.
- Available in 2, 3 and 4 drawer versions, from 136 to 272 litres.
Product Description
The Chubbsafes Fire File 31 is a certified fire-resistant filing cabinet range designed to protect important office documents and files. The range combines generous storage capacity with UL-certified fire protection and practical full-drawer access.
Complete Range
| Model | H | W | D | Capacity | Weight 1h / 2h | Drawers |
|---|---|---|---|---|---|---|
| M-135 | 784 mm | 551 mm | 779 mm | 136 L | 194 / 197 kg | 2 |
| M-205 | 1147 mm | 551 mm | 779 mm | 204 L | 268 / 273 kg | 3 |
| M-270 | 1510 mm | 551 mm | 779 mm | 272 L | 321 / 328 kg | 4 |
External dimensions exclude handle projection. Handle projection adds approximately 35 mm to depth.
Certified Resistance
Fire File 31 models are tested and certified according to UL Standard 72, Class 350 for one-hour and two-hour fire endurance. During testing, the cabinet is heated in a furnace at approximately 1000°C or above, and the internal temperature must remain below 177°C (350°F) during heating and cooling.
Construction
- Light grey RAL 7035 powder-coated finish.
- High-quality steel sliders for smooth drawer operation.
- Manufactured in accordance with ISO 9001 quality management and ISO 14001 environmental management systems.
- High-security key, mechanical combination and electronic locking options.
Product Benefits
- UL-certified protection for important documents.
- Steel dividing plates between drawers provide additional protection.
- Full drawer access with steel sliders.
- Two-hour certified models protect closed drawers even if another drawer is left open.
- High storage capacity in a compact vertical cabinet design.
- Lower-weight construction for easier transportation and installation.

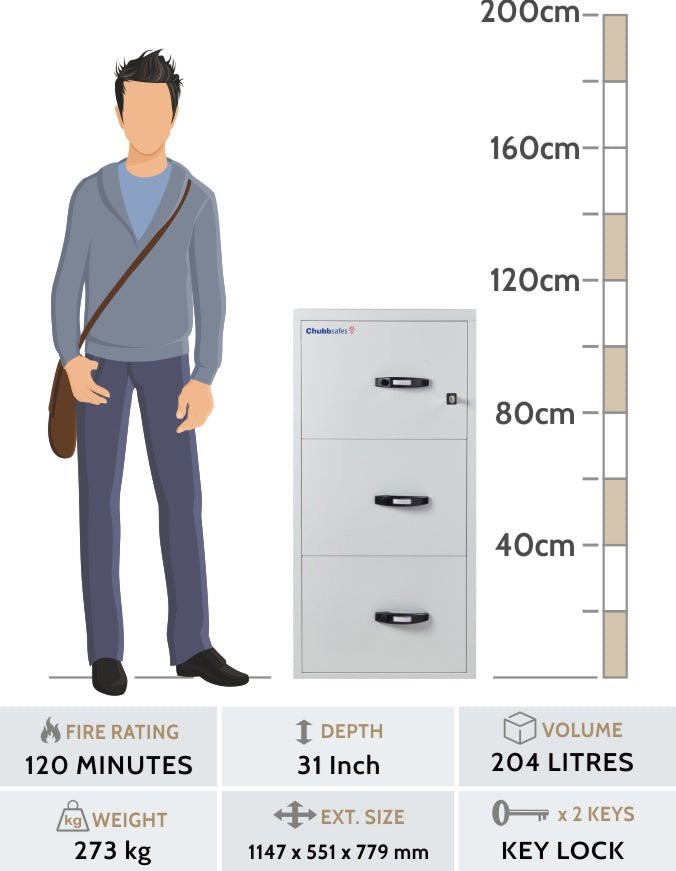

Specifications – Fire File 31 M-205
| Model | 205 |
| External Height | 1147 mm |
| External Width | 551 mm |
| External Depth | 779 mm |
| Drawer Dimensions | 290 × 387 × 604 mm |
| Capacity | 204 L |
| Net Weight | 268 kg (1h) / 273 kg (2h) |
| Number of Drawers | 3 |
Product Features Demo Video
Documents
| Certification Standard | UL 72 Class 350 |
|---|---|
| Fire Protection | Up to 120 min / 2 hours |
| Certification Body | UL |
| Type of Resistance | Fire |
| Lock Types | Combination Lock, Electronic Lock, Key Lock |
| Valuables to Protect | Documents |
| External Height | 1147 mm |
| External Width | 551 mm |
| External Depth | 779 mm |
| Drawer Dimensions | 290 × 387 × 604 mm |
| Capacity | 204 L |
| Net Weight 1h / 2h | 268 kg (1h) / 273 kg (2h) |
| Number of Drawers | 3 |
| Finish | Light Grey RAL 7035 Powder Coated |
| Product Code | CFF-31-120-3 |
